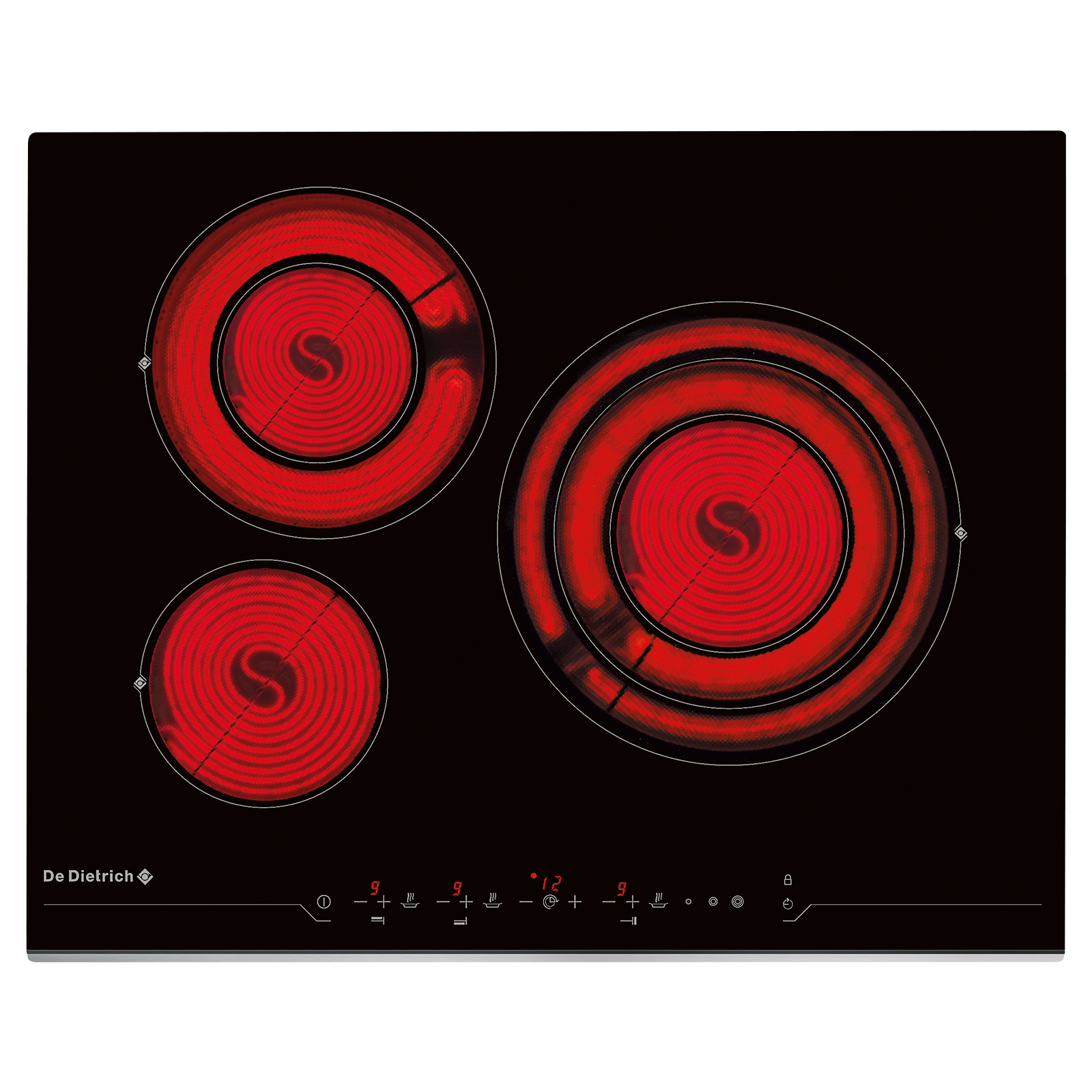

Vitroceramic hob DTV1124X

Fascination
Collection

This 3-zone vitro-ceramic hob stands out due to its triple crown radiant burner and its exceptional versatility. It allows you to accurately adjust the zone’s heat setting (from 1,050 W to 2,700 W) to suit the size of the pan placed upon it (from 16.5 cm to 30 cm).

colors

zoom

compare

Add this product to my favourites

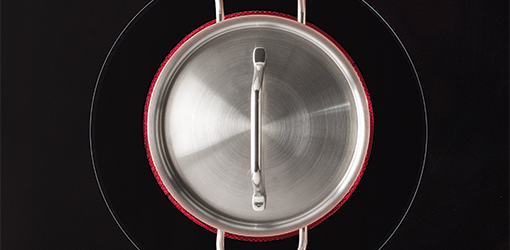

High-Performance Speedring Radiant Zones

From the most intense cooking to the gentlest simmer, Speedring radiant zones ensure a constantly even distribution of heat, helping you to cook dishes that require long simmering, or bring large volumes of liquid rapidly up to the boil.

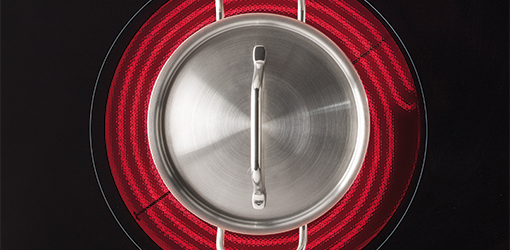

Extendible Speedring Radiant Zone

The Triple Crown extendible zone enables you to adjust its respective power levels to adapt to the size of the pan in use. This ensures that optimum heat is delivered for each type of cooking method.

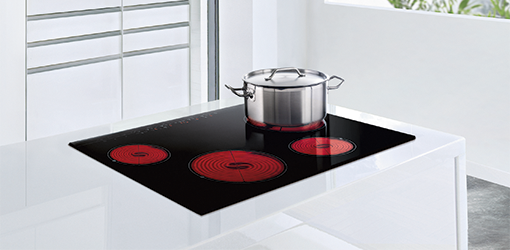

Touch-Sensitive Commands for Each Cooking Zone

These remain visible and easy to read even when multiple dishes are being cooked at the same time, with all power and time indicators displayed at once.

17 Different Cooking Positions:

These allow for a wide range of power adjustments, and making temperature selections is quick and easy thanks to two direct access keys. Finally, a separate electronic timer is provided for each zone for a greater degree of accuracy.

Download :


Notice_DTV1124X.pdf (602 Ko)

Main Specifications

Hob type:

Vitrocéramique

Width (cm):

Energy:

Electricité

Cooking zones

Number of zones:

Heating element location:

Avant Gauche

Heating element location N°2:

Arrière Gauche

Heating element location N°3:

Centre Droit

Type of heating element :

Radiant

Type of heating element N°2:

Radiant

Type of heating element N°3:

Radiant

Dimensions of the heating element (mm):

165

Dimensions of the heating element N°2 (mm):

140/230 concentrique

Dimensions of the heating element N°3 (mm):

165/230/300

Maxi power for heater (W):

1200

Maxi power for heater (W) N°2:

750/2200

Maxi power for heater (W) N°3:

1050/1950/2700

Timer:

Sélection de la minuterie sur les 3 foyers;Indépendante

Timer N°2:

Sélection de la minuterie sur les 3 foyers;Indépendante

Timer N°3:

Sélection de la minuterie sur les 4 foyers;Indépendante

Control panel

Type of control:

Touches sensitives

Type of energy regulation:

Electronique

Timer:

Oui

Electric Connections

Hob max electric power input (KW):

6.1

Current (A):

Voltage (V):

220-240

Frequency (Hz):

Length electrical supply cord (cm):

150

Plug type:

Sans

Safety devices

Power Indicator:

0 fixé dans afficheur

Residual heat Indicators:

H clignotant dans l'afficheur

Central locking:

Oui

Securities devices:

Pack 5 sécurités

Certificates of approval:

Dimensions

Dimensions of the packed product HxWxD (mm):

135X750X600

Built in dimensions WxD (mm):

560X490

Overall dimensions above the working surface HxWxD (mm):

9X650X520

Dimensions under worktop HxWxD (mm):

37X555X488

Net weight (kg):

Gross weight (kg):
